盘锦辽滨收费站膜结构工程
项 目 介 绍
Project introduction

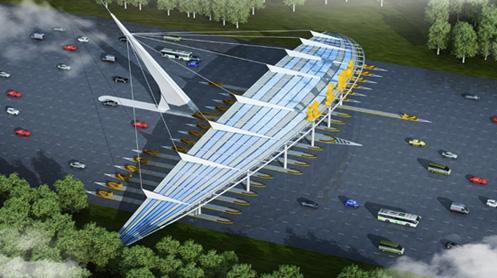

收费站罩棚平面形如弯月状，后倾的空间格构柱高29米，通过6根钢索与罩棚连成一体，罩棚中间最宽处23.11米，端头最窄处为4米。膜屋面由26个PTFE膜单元和29个ETFE膜单元两种不同类型膜材间隔组成，每个膜单元都为四边形。PTFE膜展开面积1800平米，选用进口日本中兴化成FGT-800型膜材，ETFE膜展开面积920平米，选用进口日本旭硝子膜材。
Panjin Liao Bin Toll Station Membrane Structure
This toll station plane is similar to a crescent. It is made of space lattice structure, inclined column of 29m high, 6 tensioned cables. The middle wide of the crescent is 23.11m and 4m at the end. The tensioned membrane roof is composed of 26 PTFE membrane units and 29 ETFE membrane units, two different types of membrane material units are placed alternatively.
竣工时间：2014年9月 Completion time: Sep. 2014
建设地点：盘锦 Construction site: Panjin
结构形式：骨架式 Structure form: Framework structure
膜 面 积：2600平米 Membrane area: 2600 square meters
膜材型号：中兴化成FGT-800 PTFE Membrane material: Chukoh FGT-800 PTFE
日本旭硝子250um ETFE Fluon 250um ETFE
